PRODUCTS -    Handlebars & Accessories

(Handlebars)    (Grips, Spirals and Parts)

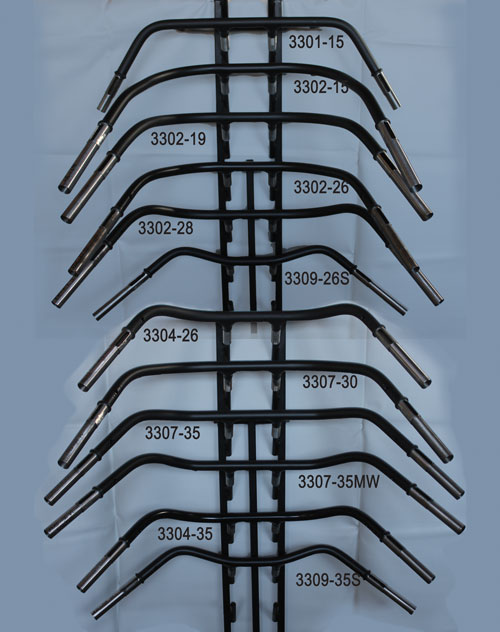

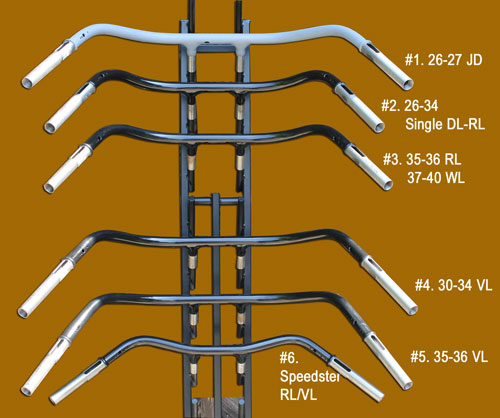

Handlebar display





Click on handlebars (left) or part #s below for larger image.

ITEM # DESCRIPTION WIDTH DRAW RISE
3301-15 Board Tracker / 1915-29 J, JD, singles (long grips) 28.5" 7.75" -4.5"
3302-15 Standard / 1915-19 J (long grips) 24.5" 17" 9.5"
3302-19 Standard / 1919-25 J (long grips) 26.75" 14" 9.25"

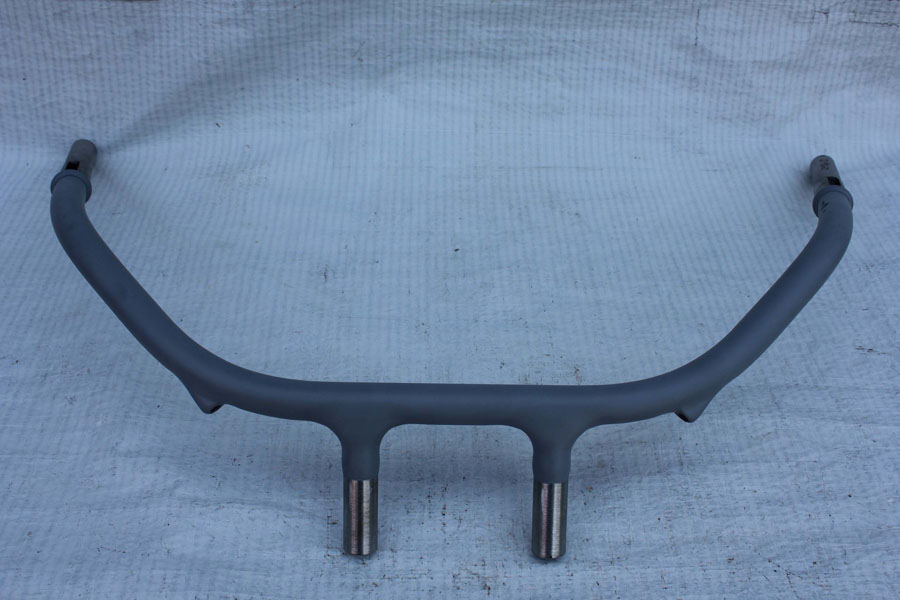

3302-26 Standard / 1926-27 J, JD (long grips) 29.5" 13" 4.5"
3302-28 Standard /1928-29 J, JD (long grips) 32.25" 11.25" 7.5"

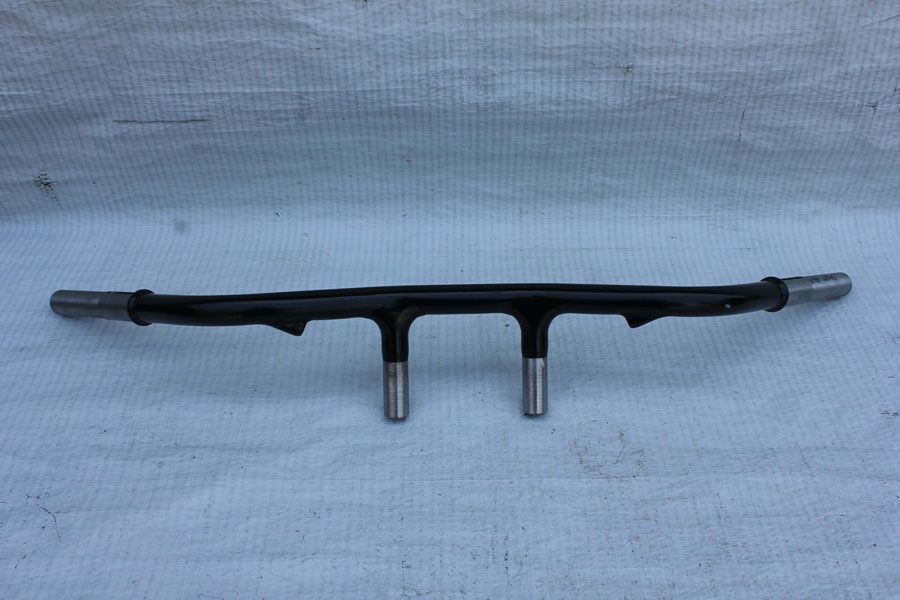

3309-26S Speedster / 1926-34 singles, JD, DL,RL, VL (long grips) 32" 6" 1.5"

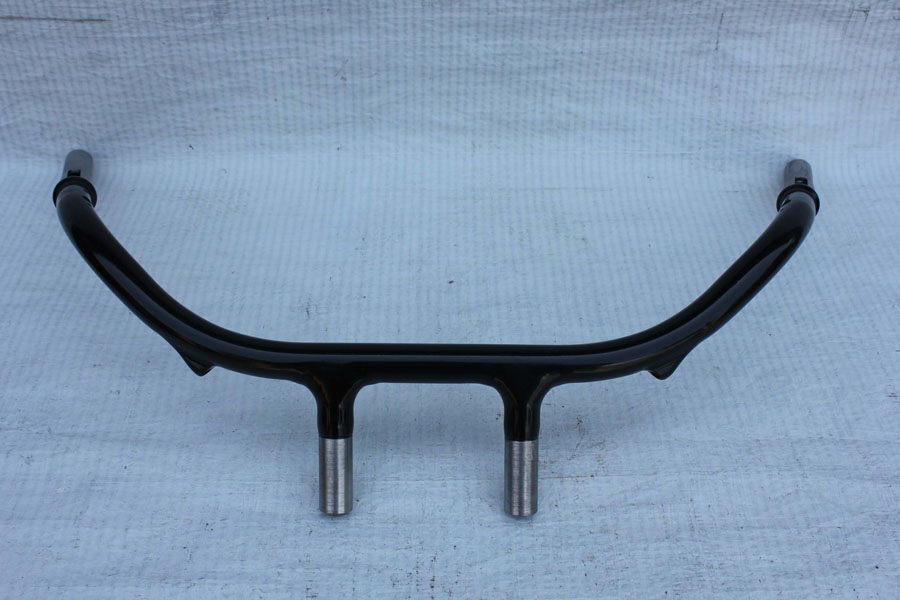

3304-26 Standard / 1926-34 singles, DL, RL (long grips) 26" 12" 3.5"

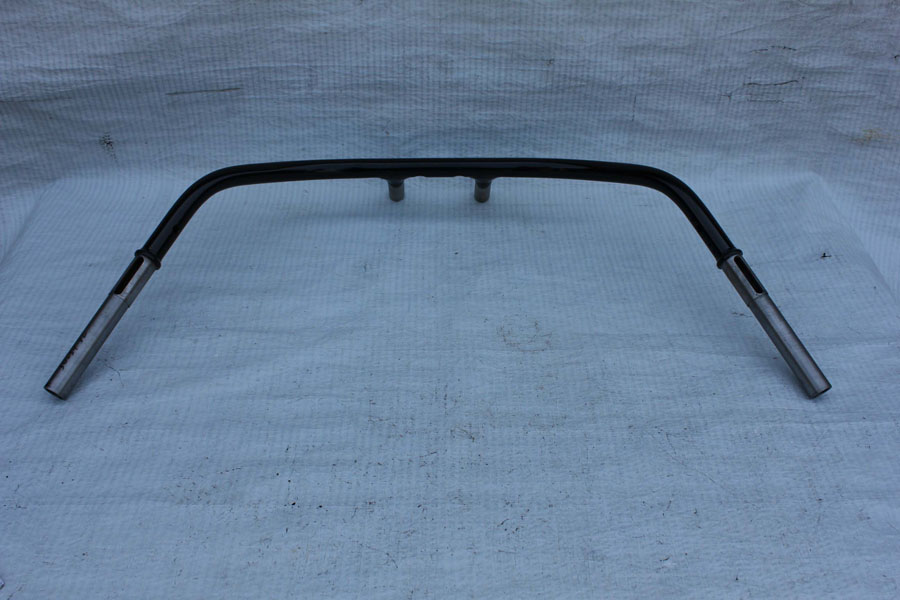

3307-30 Standard / 1930-34 VL (long grips) 30.5" 13" 4.25"

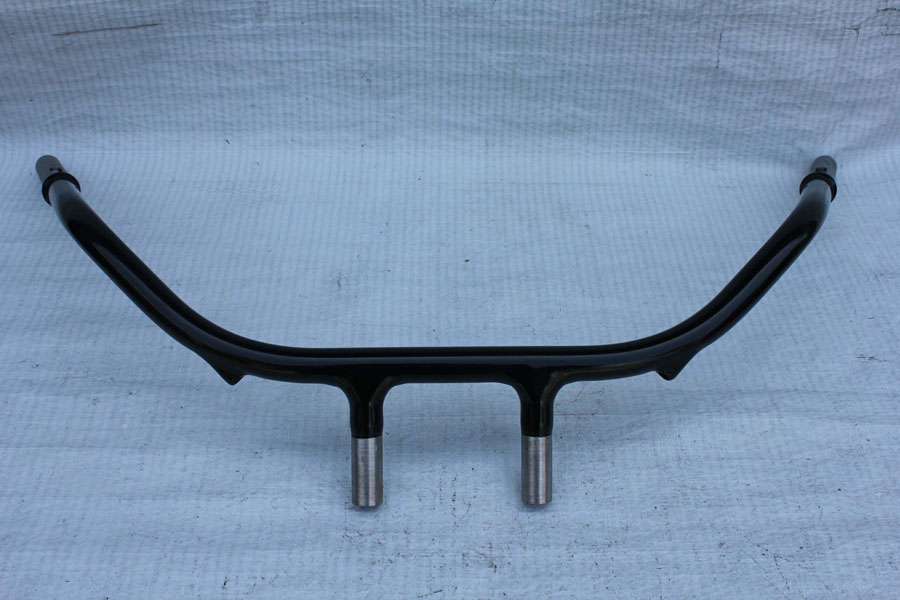

3307-35 Standard / 1935-35 VL (short grips) 31.5" 13.5" 4"
3307-35MW Sidecar / 1935-36 VL, G Servicar (short grips) 35" 9.25" 7.25"

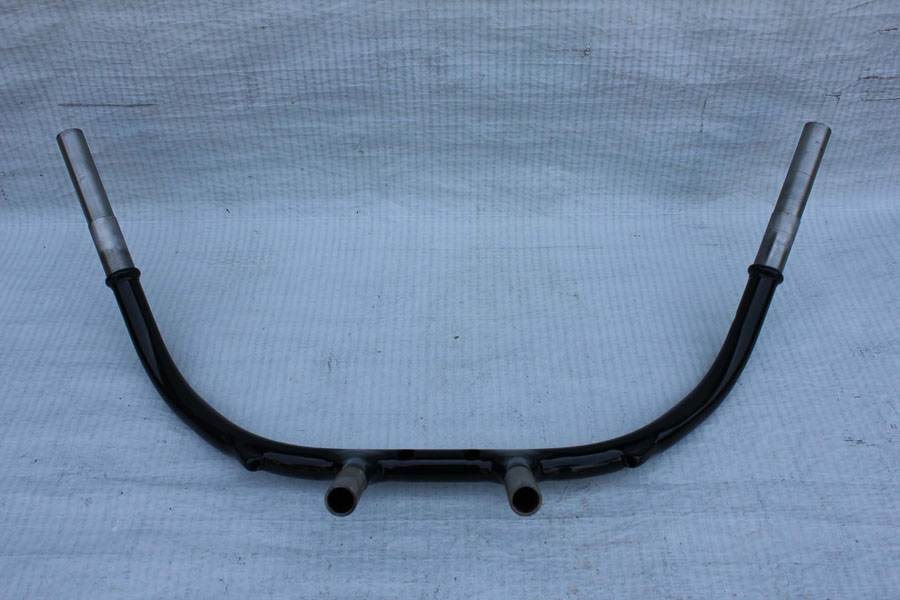

3304-35 Standard / 1935-39 RL, WL (short grips) 27" 12" 3.5"
3309-35S Speedster / 1935-39 VL, RL, WL (short grips) 30.5" 5.5" 1.5"
